Stacked official word:

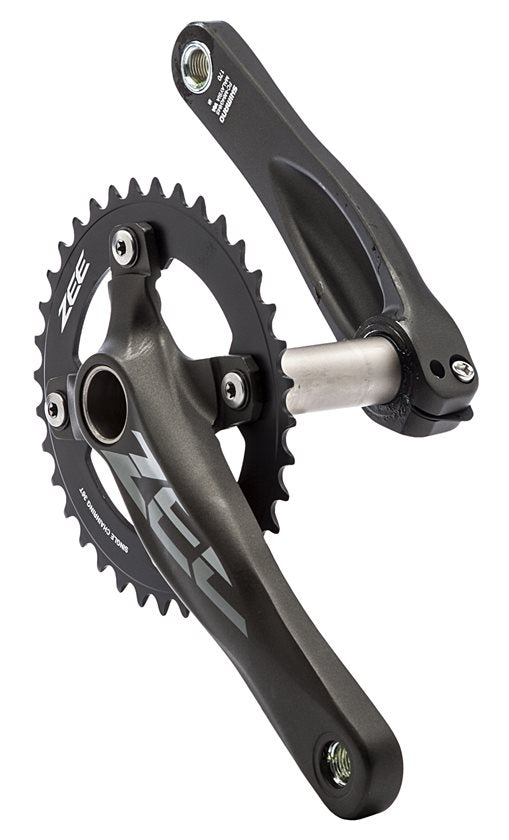

The Shimano Zee cranks are an amazing crankset for Bike life or mtb at a very reasonable price. They utilize heavy duty aluminum cranks arms that are thick but designed with a lot of recessed areas to keep them nice & light. The pedal bosses have a metal insert to prevent them from stripping out. The two piece design is constructed out of chromoly and is significantly hollowed out to reduce the weight. The crankset even comes with a 104 BCD 36t chainring to prevent tight loose spots in your chain. The built is spider is an excellent choice if you are riding fixed because your sprocket will not comes loose while applying crank pressure forward and backwards. The Zee cranks come with a sealed euro 68/78mm bottom brackets you know it will work on any bike with a euro bottom bracket. These cranks even work with press fit bottom brackets you just need to purchase a press fit bottom bracket separately. If you are tired of bending cranks bolt these on and keep rolling.
Shimano official word:
"The ZEE FC-M640 crank is designed for the rigors of gravity riding with thick-wall 2-piece cranks, a strong, steel axle, and steel pedal inserts. Chainrings include 34, 36, and 38T"
- Strong thick-wall 2pcs-crank arm
- Strong steel axle
- Steel pedal insert
- Choices of spec
- FC-M640 68/73mm bottom bracket
- Press-Fit bottom bracket compatible
- 36T
- Weight: 906g (FC-M640, 36T, 170mm, without bash guard) 938g (FC-M645, 36T, 170mm, without bash guard)
specs:
PRODUCT SPECIFICATIONS
| MODEL NO | FC-M640 |
|---|---|
| SERIES | ZEE M640 Series |
| Color | Series color |
| Average weight | 817 g (36T) |
| 2-piece crank construction | ✔ |
|---|---|
| Chain line (mm) | 50.4 |
| Chain ring combination | 36T (FC-M640/M645 chainring) |
| Compatible BB type_Outboard | ✔ |
| Compatible chain | HG-X 10-speed |
| Crank fixing bolt included | ✔ |
| Crank arm length (mm)_165.0 | ✔ |
| Crank arm length (mm)_170.0 | ✔ |
| Crank arm length (mm)_175.0 | ✔ |
| Gear arms | 4 arm |
| Optional chain guard_Without chain / bash guard | ✔ |
| P.C.D. (mm) | 104 |
| Rear speeds | 10 |
| Recommended BB_Pressfit | SM-BB71-41A |
| Recommended BB_Threaded (E-type) | SM-BB52 |
| Recommended BB_Threaded (normal) | SM-BB52 |
| Threaded BB shell width_68mm | ✔ |
| Threaded BB shell width_73mm | ✔ |
| Crank arm fixing bolt_With | ✔ |
| Q-factor (mm) | 174.7 |
